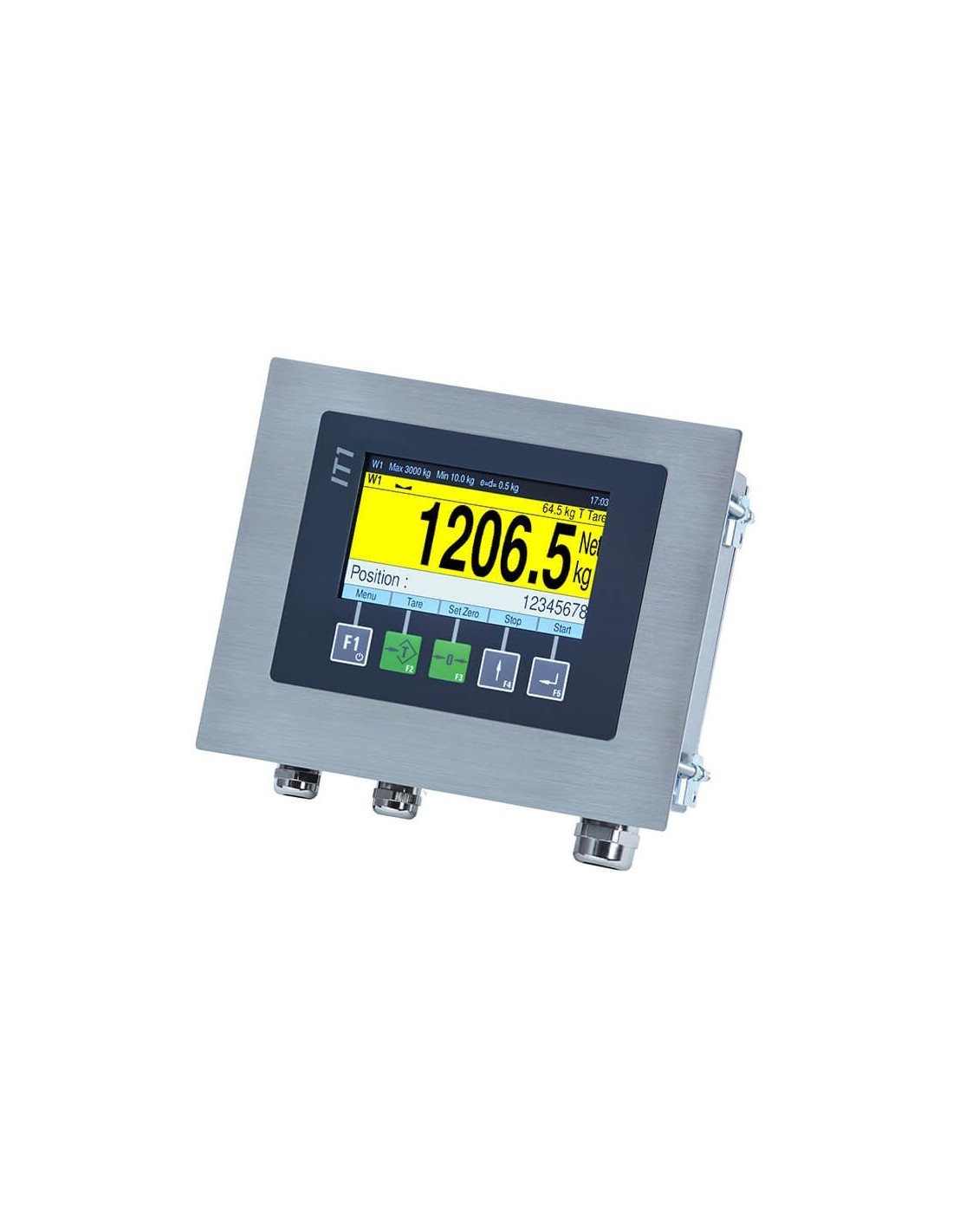

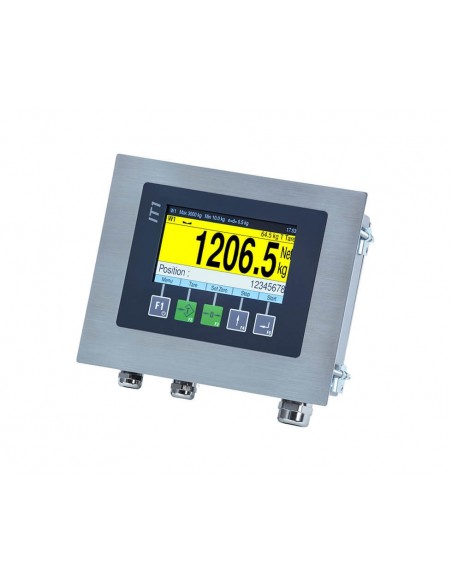

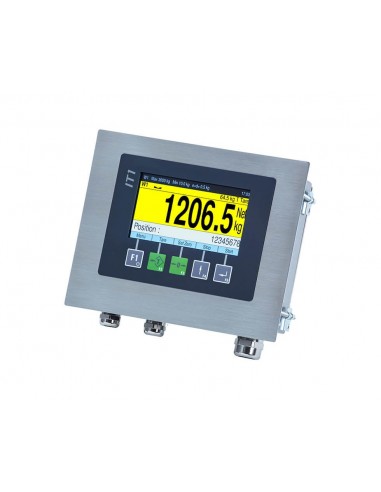

IT1 Weighing Indicator
WEIGHT INDICATORS
IT1 is a cost-effective industrial weighing indicator for standard applications. W&M approved. Robust. For industrial scales.
Key Features:
- Robust: Stainless steel housing (ingress protection – IT1: IP69K, IT1 Ex2/22: IP 65), all cables inserted into the housing through tight cable glands
- W&M approved: For worldwide use as non-automatic weighing instrument (approved in the EC, USA, Canada, and other countries)
- Excellent readability: Bright TFT color display (4.3") with wide viewing angle

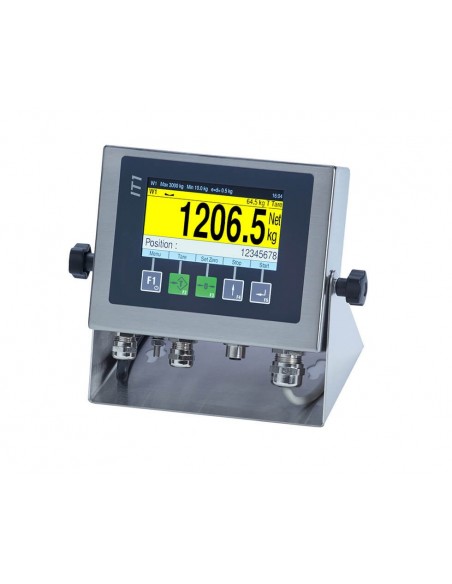

- Various designs: Wall-mount/desk-top or panel-mount versions available
- Easy integration into PC networks, interfaces for remote displays, printers and other peripheral devices
- Hazardous area: For installation in hazardous area SysTec offers the IT1 Ex2/22 version
IT1 series weighing indicators
The IT1 is a cost-effective industrial weighing indicator for standard applications. The W&M approved indicator is available as a wall-mount/desk-top unit or as panel-mount version for installation in a switch cabinet.
SysTec also offers a version of the weighing indicator for installation in hazardous area (IT1 Ex2/22).
Fields of application
- Floor and bench scales
- Check scales
- Hopper scales (setpoint controller)
- Mobile scales
- DEGREE OF PROTECTION
- IP65
IP69K - INSTALLATION
- Desk
Panel
Wall - DISPLAY
- LCD
- ANALOG OUTPUT
- 0–20 mA, 4–20 mA, 0–10 V or 2–10 V, 15 bit, 32,000 divisions, for analog output of weight.
- SERIAL PORTS
- RS232
RS485 - POWER SUPPLY
- 12...28 VDC, max. 300mA
12–30 V DC
110–240 V AC, 50/60 Hz - FIELDBUS
- Ethernet/IP
Ethernet TCP/IP - RELAY OUTPUTS
- 2
- LOGIC INPUTS
- 2
