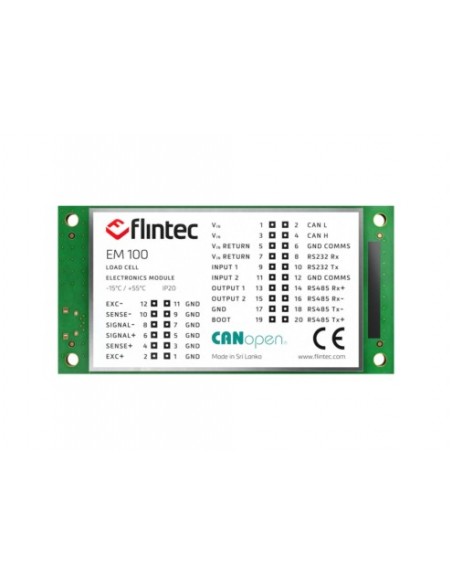

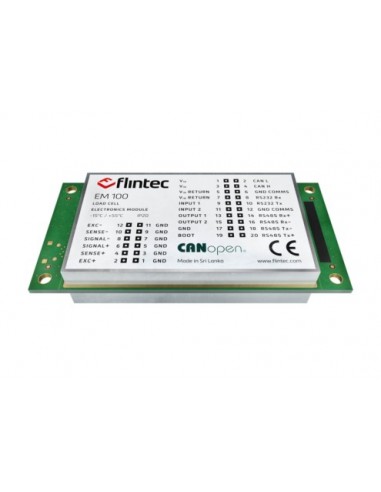

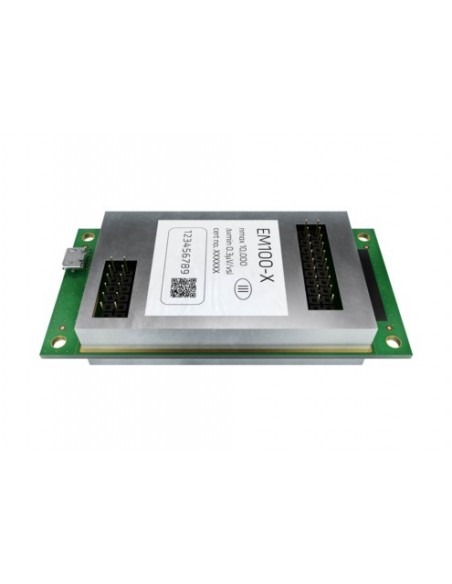

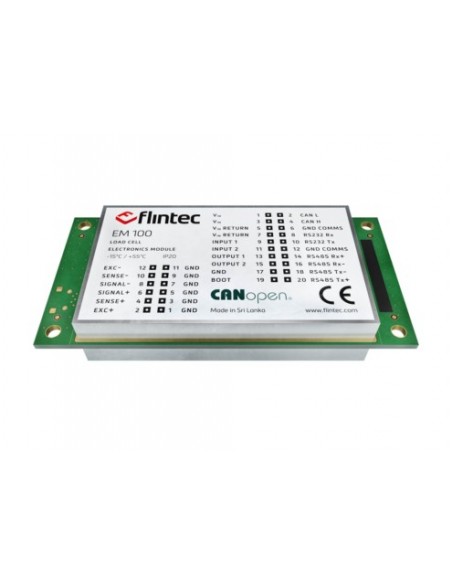

EM100 Load Cell Digitising Unit
DIGITISING UNITS
High accuracy.
With serial interface CANOpen, RS-232, RS-485 up to 1200 samples per second for DC models 6-wire technology, serial interface for direct connection to PC or PLC.
Key Features
- High accuracy
- Up to 1,200 samples per second for the DC models. (80 for the AC)
- Extensive command set
- Excitation for up to 6 load cells
- CAN Interface with CANOpen Protocol.
- Serial interface for direct connection to PC or PLC
- GPIOs (2x logical inputs & 2x logical outputs)
- 6-wire technology
- OIML ‘legal-for-trade’ certifications
- Uses Flintec FDC software (for analysis and config)
- Optional adapter board
Application
- EM100 is designed for a range of universal weighing applications where high speed, accurate weighing is required. General applications include process weighing as well as process automation and control. Configurations include AWI & NAWI weighing, check weighing and gravimetric filling.
- DEGREE OF PROTECTION
- IP20
- INSTALLATION
- Desk
Wall - DISPLAY
- LCD
- ANALOG OUTPUT
- 0/4-20 mA; 0-5/10 V; В±5/10 V
- SERIAL PORTS
- RS232
RS485 - POWER SUPPLY
- 12...28 VDC, max. 300mA
100...240V AC - FIELDBUS
- CANopen
- RELAY OUTPUTS
- 5
- LOGIC INPUTS
- 4
