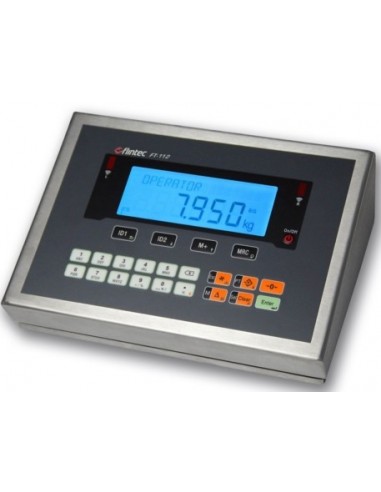

FT-112 Weighing Indicator
WEIGHT INDICATORS
W&M approved for 10 000 intervals, LED display
With real time clock, serial interface RS232 (2x), RS485 and USB
Type FT-12 additional with EtherNet interface
Key Features
- OIML certified to 10,000d
- Connect up to 8 load cells 350 Ω or 25 load cells 1 100 Ω
- Connect up to 2 scales with sum function
- 4-wire or 6-wire technology
- 5 steps programmable adaptive filter
- Standard Interface RS232C, RS485, Ethernet TCP/IP, USB
- SD card slot for additional memory
- Smart Track function
- Calibration with eCal or test weights
- Power supply 100…240 V AC or 12…28 V DC
Application
- Universal Process Weighing systems and process automation & control applications.
- DEGREE OF PROTECTION
- IP67
- INSTALLATION
- Desk
Wall - DISPLAY
- LCD
- ANALOG OUTPUT
- 0/4-20 mA; 0-5/10 V; В±5/10 V
- SERIAL PORTS
- RS232C
RS485 - POWER SUPPLY
- 12...28 VDC, max. 300mA
100...240V AC - FIELDBUS
- 16bit analog output
Additional RS485
CANopen
CC-LINK
EtherCAT
Ethernet/IP
Modbus RTU/TCP
POWERLINK
Profibus DP
Profinet IO - RELAY OUTPUTS
- 5
- LOGIC INPUTS
- 4
