WINOX - BGE

Reference WEIGHT INDICATOR

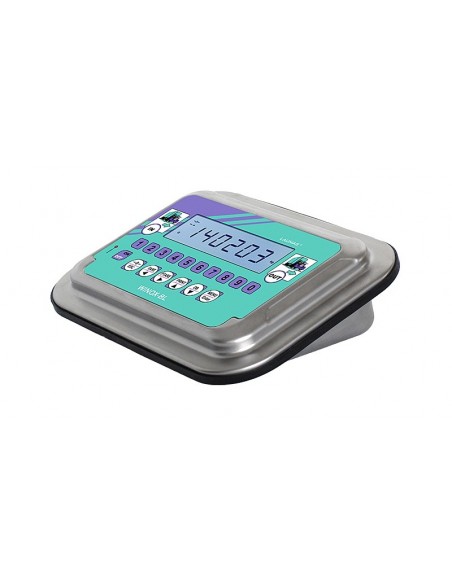

STAINLESS STEEL WEIGHT INDICATOR FOR WEIGHBRIDGE

Ideal for desk mounting
Vehicle weighing: Double weighing (entry and exit), single weighing (entry or exit), double/single weighing with trailer, mutliple weighing (weighing of multi-compartment trucks). Database with 500 vehicles (license plates, predetermined tare), products, customers and operators. Barcode reader management with printing and call-out of the open weighing ID. Up to 10000 weighings that can be saved in alibi memory. Traffic light management via relay outputs.
Backlit graphic LCD display, 133x39 mm, 240x64 pixels
RS232 and RS485 ports (Modbus RTU/Laumas ASCII protocol)
3 logic inputs, 5 relay outputs
2 USB ports, 1 Ethernet TCP/IP port
OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI

OPTIONAL

GENERAL FEATURES

AISI 304 stainless steel Weight Indicator, dimensions 206 x 286 x 108 mm. IP40 protection rating (D-SUB connectors). 52-key membrane keyboard. Real time clock/calendar.

Ideal for desk mounting
Vehicle weighing: Double weighing (entry and exit), single weighing (entry or exit), double/single weighing with trailer, mutliple weighing (weighing of multi-compartment trucks). Database with 500 vehicles (license plates, predetermined tare), products, customers and operators. Barcode reader management with printing and call-out of the open weighing ID. Up to 10000 weighings that can be saved in alibi memory. Traffic light management via relay outputs.
Backlit graphic LCD display, 133x39 mm, 240x64 pixels
RS232 and RS485 ports (Modbus RTU/Laumas ASCII protocol)
3 logic inputs, 5 relay outputs
2 USB ports, 1 Ethernet TCP/IP port
OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI
Supported printers: Epson TM-U295, Epson LX300, Custom Kube II, Laumas STAVT II. Other models on request.
A/D converter 24bit (16000000 points) 4.8 kHz
Display range 999999

Some optional features:

Alibi memory (up to 10000 weighed values storable)
Two-way radio transmission

European Community registered design.

DEGREE OF PROTECTION: IP40
IP68
INSTALLATION: Desk
DISPLAY: LCD
ANALOG OUTPUT: 0-20mA; 4-20mA; 0-10V
SERIAL PORTS: RS232
RS485
POWER SUPPLY: 12 VDC
24 VDC
115 VAC
230 VAC
RELAY OUTPUTS: 5
LOGIC INPUTS: 3
