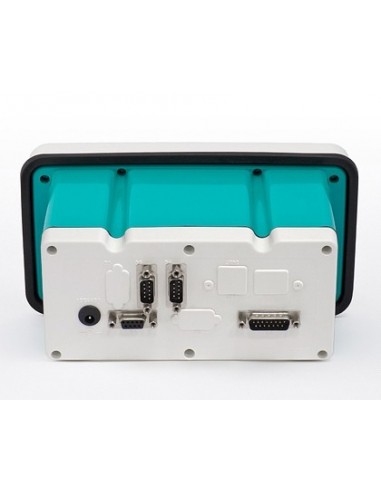

WDESK-BR

Reference WEIGHT INDICATOR

WEIGHBRIDGE INDICATOR

Possible installations: desk, wall
Vehicle weighing: Double weighing (entry and exit), single weighing (entry or exit), double/single weighing with trailer, mutliple weighing (weighing of multi-compartment trucks). Trucks database with password, max 999 preset tare that can be stored and recalled. Open input weighs archive (max 254). Totals management and traffic light function.
Six-digit red LED display, 20 mm height
RS232 and RS485 ports (Modbus RTU/Laumas ASCII protocol)
2 logic inputs, 4 relay outputs
OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI
Supported printers: Epson TM-U295, Epson LX300, Custom Kube II, Laumas STAVT II. Other models on request

GENERAL FEATURES

ABS Weight Indicator, dimensions 122 x 226 x 164 mm. IP40 protection rating (D-SUB connectors). 19-key membrane keyboard. 16 indicator led. Real time clock/calendar.

Possible installations: desk, wall
Vehicle weighing: Double weighing (entry and exit), single weighing (entry or exit), double/single weighing with trailer, mutliple weighing (weighing of multi-compartment trucks). Trucks database with password, max 999 preset tare that can be stored and recalled. Open input weighs archive (max 254). Totals management and traffic light function.
Six-digit red LED display, 20 mm height
RS232 and RS485 ports (Modbus RTU/Laumas ASCII protocol)
2 logic inputs, 4 relay outputs
OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI
Supported printers: Epson TM-U295, Epson LX300, Custom Kube II, Laumas STAVT II. Other models on request
A/D converter 24bit (16000000 points) 4.8 kHz
Display range 999999

Some optional features:

Alibi memory (up to 10000 weighed values storable)

European Community registered design.
Patent pending.

DEGREE OF PROTECTION: IP40
INSTALLATION: Desk
Wall
DISPLAY: LCD
ANALOG OUTPUT: 0/4-20 mA; 0-5/10 V; В±5/10 V
SERIAL PORTS: RS232
RS485
POWER SUPPLY: 12 VDC
24 VDC
115 VAC
230 VAC
FIELDBUS: CANopen
DeviceNet
Ethernet/IP
Ethernet TCP/IP
Modbus/TCP
Profibus DP
Profinet IO
RELAY OUTPUTS: 4
LOGIC INPUTS: 2
