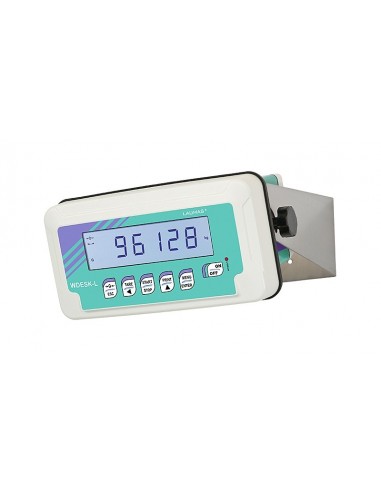

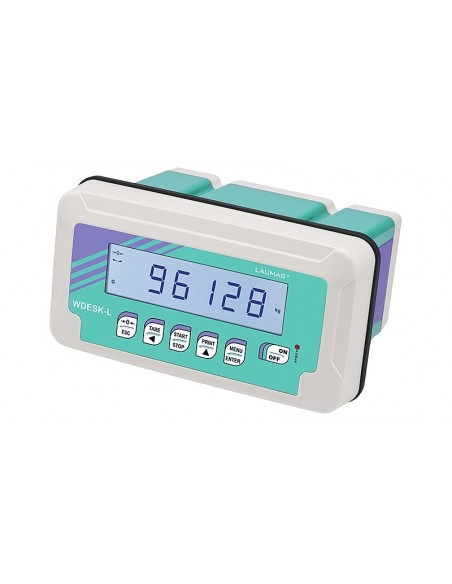

WDESK-L

Reference WEIGHT INDICATOR

IP67 WEIGHT INDICATOR (for weighing and batching)

Possible installations: wall, panel, column, desk
Multiprogram: single loading/unloading and multi-product batchings, max 99 formulas
Six-digit backlit LCD display, 20 mm height
RS232 and RS485 ports (Modbus RTU/Laumas ASCII protocol)
3 logic inputs, 5 relay outputs
OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI
OIML R61 approved - WELMEC Guide 8.8:2011 (M.I.D.)
Optional fieldbuses: Profibus DP, DeviceNet, CANopen, Profinet IO, Modbus/TCP, Ethernet/IP. Ethernet TCP/IP port for remote management via internet from PC, smartphone or tablet, etc.

PROGRAM

GENERAL FEATURES

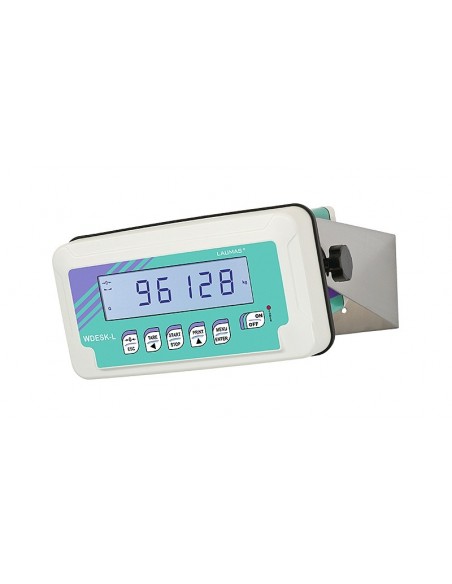

ABS Weight Indicator, dimensions 122 x 226 x 164 mm. IP67 protection rating. Six-key membrane keyboard. 46 indicator symbols. Real time clock/calendar.

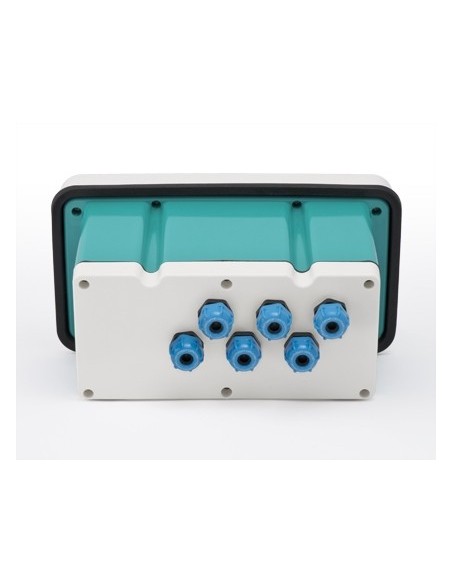

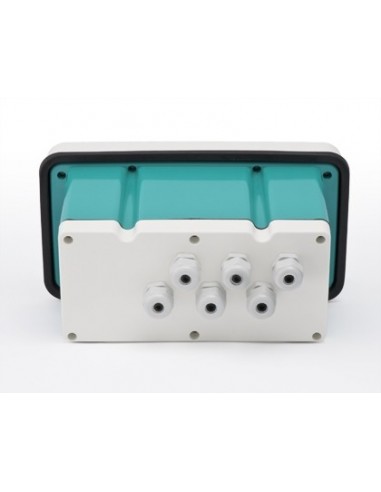

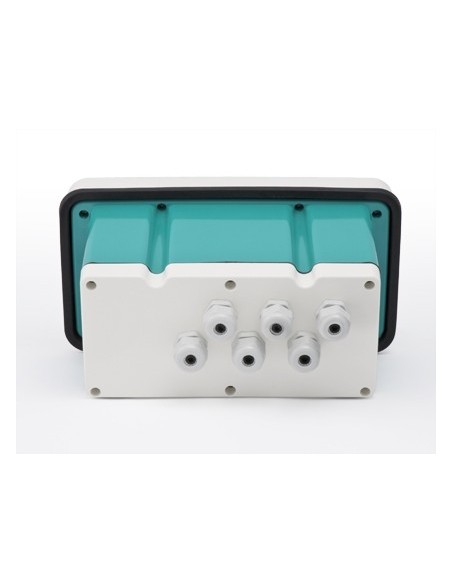

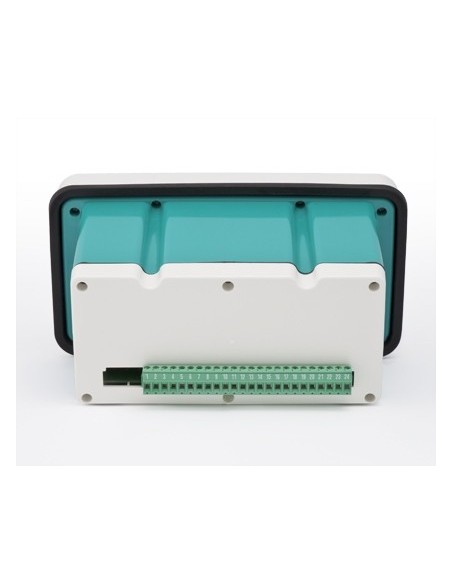

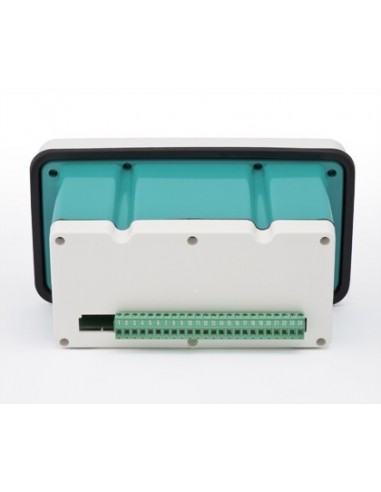

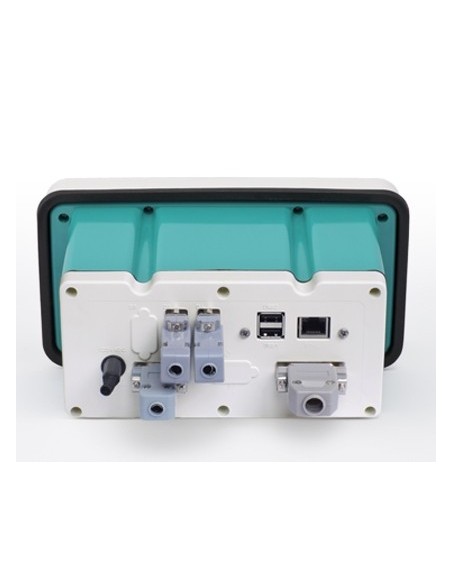

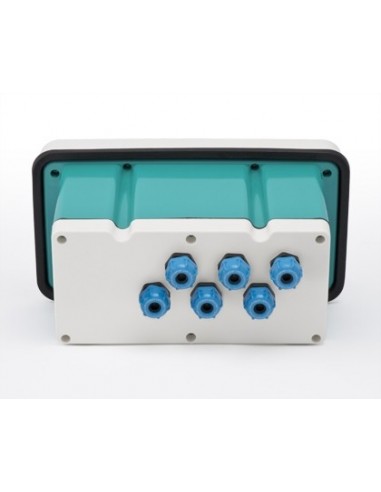

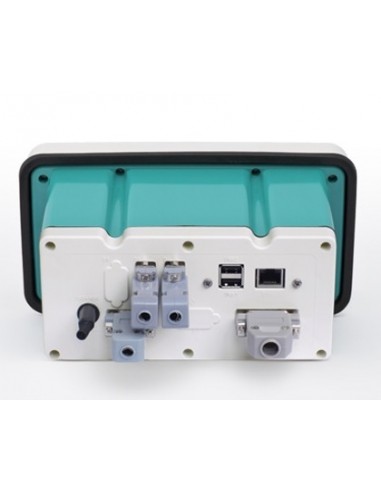

Different versions for various types of electrical connections: cable glands, D-SUB connectors, removable terminal.

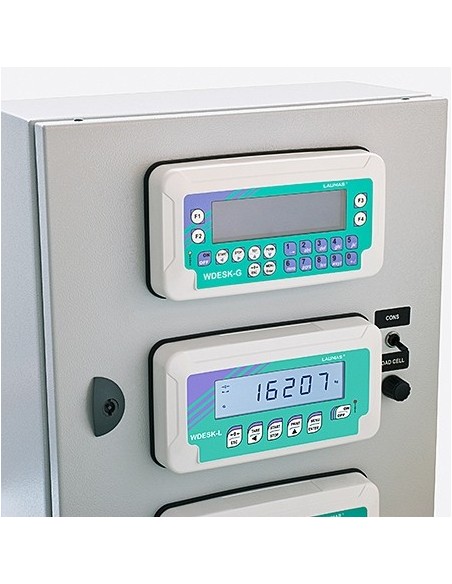

Possible installations: wall, panel, column, desk
Multiprogram: single loading/unloading and multi-product batchings, max 99 formulas
Six-digit backlit LCD display, 20 mm height
RS232 and RS485 ports (Modbus RTU/Laumas ASCII protocol)
3 logic inputs, 5 relay outputs
OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI
OIML R61 approved - WELMEC Guide 8.8:2011 (M.I.D.)
Optional fieldbuses: Profibus DP, DeviceNet, CANopen, Profinet IO, Modbus/TCP, Ethernet/IP. Ethernet TCP/IP port for remote management via internet from PC, smartphone or tablet, etc.
A/D converter 24bit (16000000 points) 4.8 kHz
Display range 999999

Some optional features:

Data storage on USB pen drive
ATEX II 3GD version
16-bit Analog output: 0/4-20 mA; 0-5/10 V; ±5/10 V

European Community registered design.
Patent pending.

DEGREE OF PROTECTION: IP40
IP67
INSTALLATION: Column
Desk
Panel
Wall
DISPLAY: LCD
ANALOG OUTPUT: 0/4-20 mA; 0-5/10 V; В±5/10 V
SERIAL PORTS: RS232
RS485
POWER SUPPLY: 12 VDC
24 VDC
115 VAC
230 VAC
FIELDBUS: CANopen
DeviceNet
Ethernet/IP
Ethernet TCP/IP
Modbus/TCP
Profibus DP
Profinet IO
RELAY OUTPUTS: 5
LOGIC INPUTS: 3
