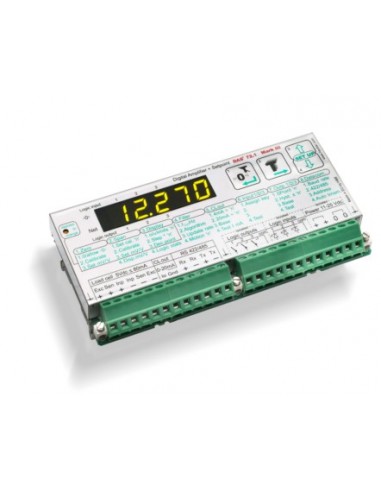

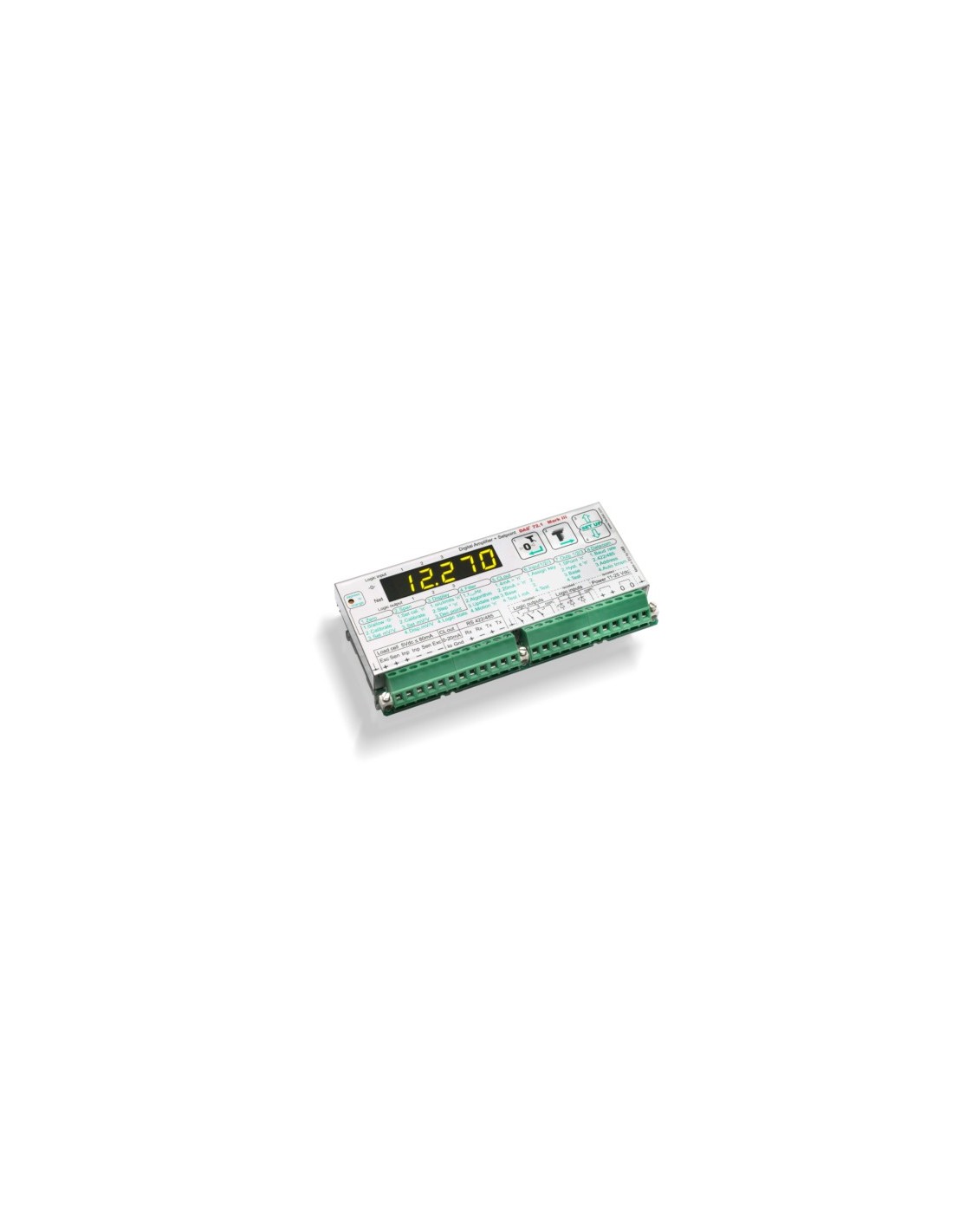

DAS 72.1 Process Indicator
WEIGHT INDICATORS
The DAS 72.1 Mark III process indicator is a fast, accurate, rail mounting instrument for static and dynamic weighing applications. It has a 5-digit LED weight display and service display, serial interface, analogue output and 3 digital inputs and outputs. The digital inputs and outputs are programmable. Communication via serial interface RS422/RS485 makes it easy to connect to PC, PLC and other devices. Standard weighing functions are available. Display of: Gross Weight; Net Weight; Peak Value; Peak to Peak Value; Average Value; Hold Value; Valley Value. Software calibration and set up. Basic version: Printed circuit board with metal housing for DIN-rail mounting; with screw terminals
Key Features
- 2400 measurements/sec
- 5 digit LED display
- DIN mounted
- Ideal for both static and dynamic weighing
- Serial interface
- Analogue output
- 3 digital I/O
- RS422/RS485 interfaces
- Standard weighing functions
Application
- Universal Process Weighing Systems and process automation & control applications.
- DEGREE OF PROTECTION
- IP40
- DISPLAY
- LCD
- ANALOG OUTPUT
- 0/4-20 mA; 0-5/10 V; В±5/10 V
- SERIAL PORTS
- RS422
RS485 - POWER SUPPLY
- 11 ... 25VDC
- FIELDBUS
- Additional RS485
Profibus DP - RELAY OUTPUTS
- 3
- LOGIC INPUTS
- 3
