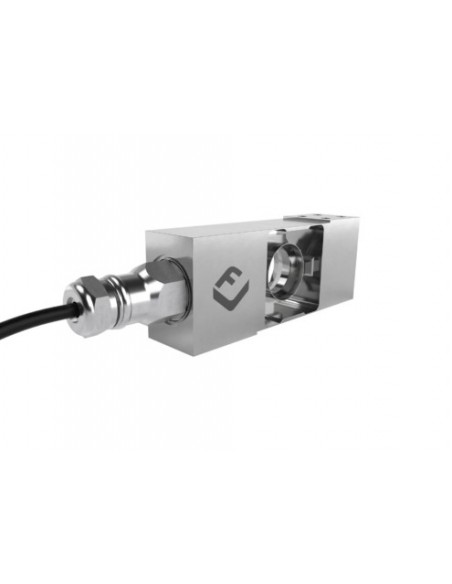

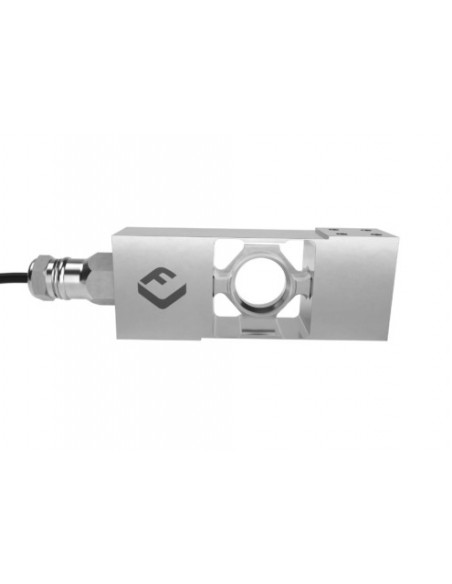

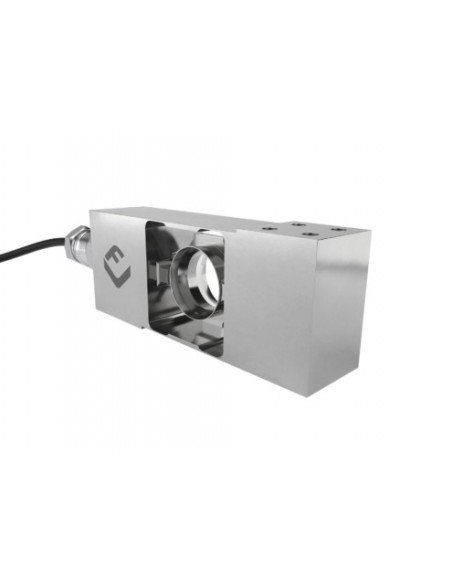

PC6 Single Point Load Cell (10 - 200kg)
LOAD CELLS
Stainless steel, hermetically sealed, IP68, Cable gland stainless steel, grounded shield
Maximum platform size:
- 10 kg…20 kg: 350 x 350 mm
- 50 kg: 500 x 500 mm
- 100 kg…200 kg: 600 x 600 mm
6 m standard cable length, optional 10 m or other cable lengths.
The shield is floating or connected to the load cell body.
Key Features
- Stainless steel construction
- Hermetically sealed
- Wide capacity range
- For platform sizes of 600 x 600mm
- High accuracy
Application
- Bench scales,
- Small platform scales,
- Multi-head weighers,
- High speed checkweighers.
- DEGREE OF PROTECTION
- IP68
- Maximum capacity (E max )
- 10 kg
20 kg
50 kg
100 kg
200 kg - ATEX VERSION
- YES
- PRECISE LEVEL
- -C3 MI 6, Y - 12500
-C3 MI 6, Y - 25000
-C3, Y - 12500
-C3, Y - 25000
-C4, Y - 12500
-C4, Y - 25000
