WINOX - R

Код WEIGHT INDICATOR

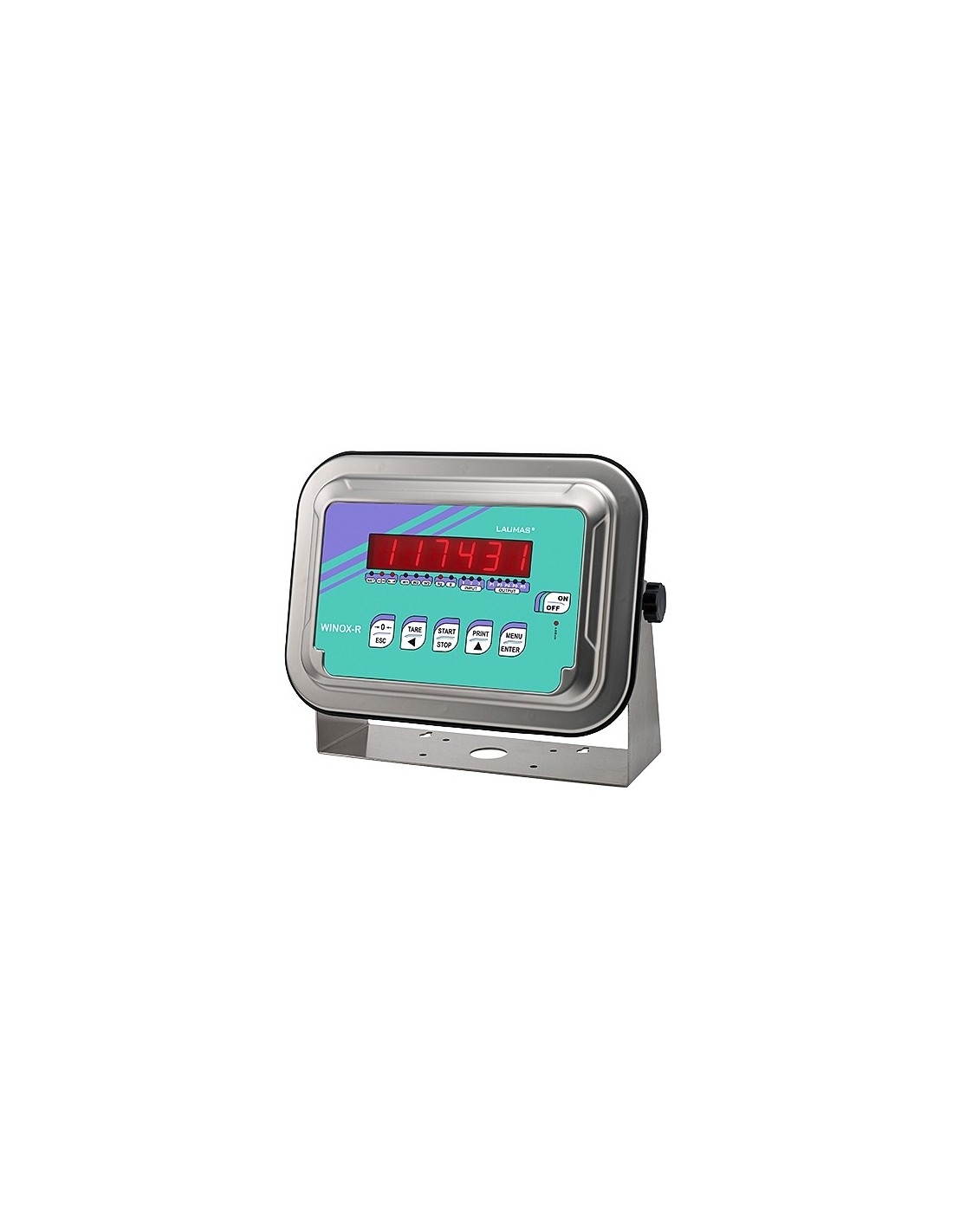

STAINLESS STEEL IP68 WEIGHT INDICATOR (for weighing and batching)

Possible installations: wall, panel, column, desk
Multiprogram: single loading/unloading and multi-product batchings, max 99 formulas
Six-digit red LED display, 20 mm height
RS232 and RS485 ports (Modbus RTU/Laumas ASCII protocol)
3 logic inputs, 5 relay outputs
OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI
OIML R61 approved - WELMEC Guide 8.8:2011 (M.I.D.)
Optional fieldbuses: Profibus DP, DeviceNet, CANopen, Profinet IO, Modbus/TCP, Ethernet/IP. Ethernet TCP/IP port for remote management via internet from PC, smartphone or tablet, etc.

PROGRAM

AVAILABLE VERSIONS

P Version
Q Version
X Version
D Version

GENERAL FEATURES

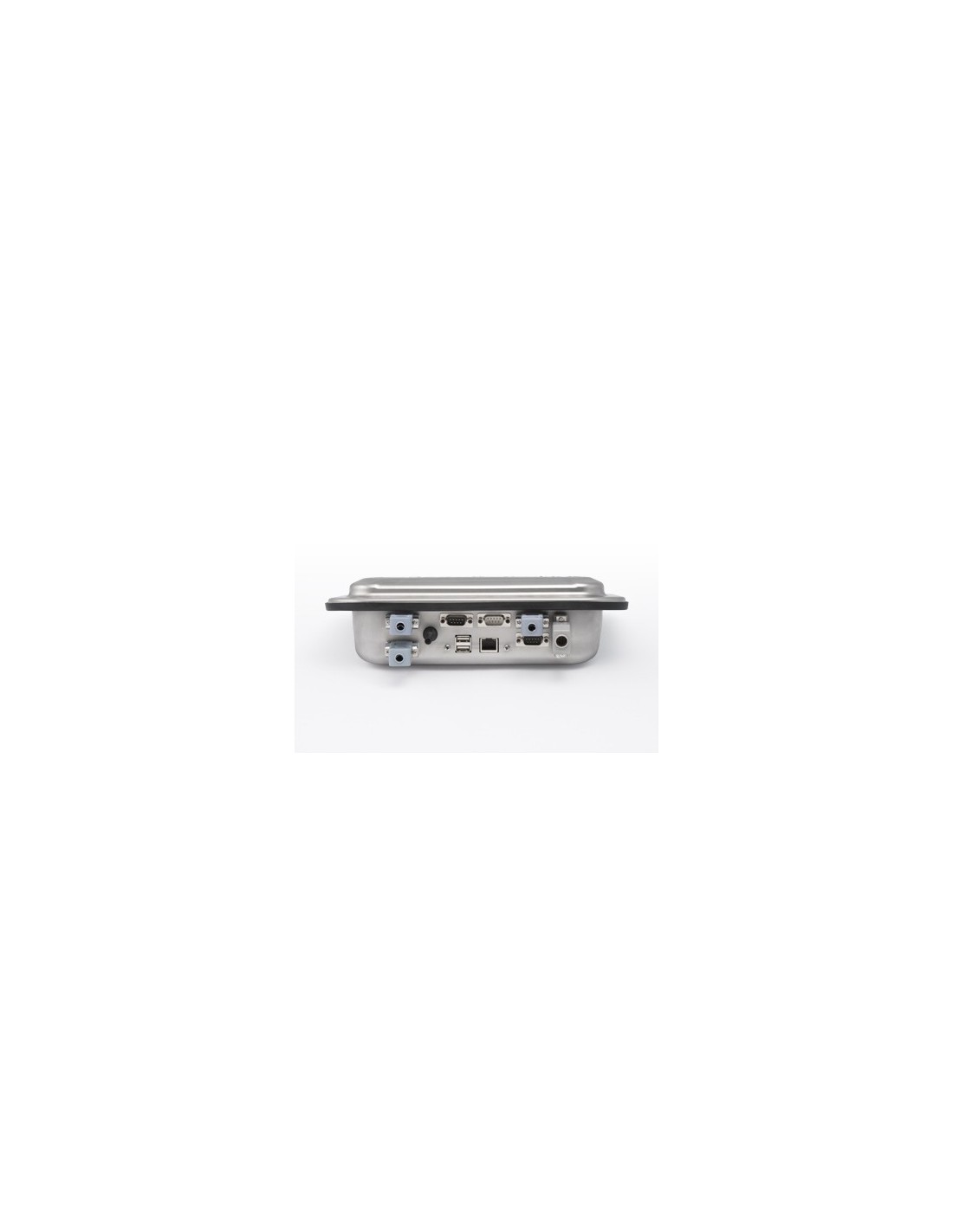

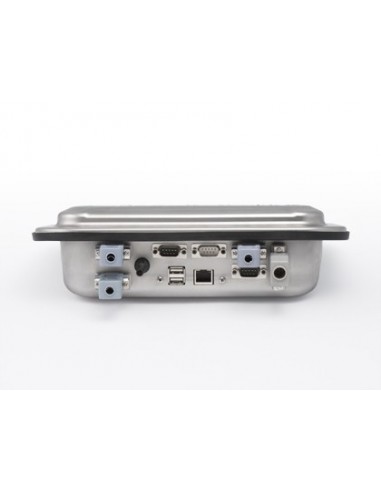

AISI 304 stainless steel Weight Indicator, dimensions 206 x 286 x 108 mm, stainless steel adjustable bracket included (overall dimensions: 206 x 290 x 187 mm). IP68 protection rating (IPX9K optional). Six-key membrane keyboard. 16 indicator led. Real time clock/calendar. Different versions for various types of electrical connections: cable glands, D-SUB connectors, removable terminal board/connectors.

Possible installations: wall, panel, column, desk
Multiprogram: single loading/unloading and multi-product batchings, max 99 formulas
Six-digit red LED display, 20 mm height
RS232 and RS485 ports (Modbus RTU/Laumas ASCII protocol)
3 logic inputs, 5 relay outputs
OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI
OIML R61 approved - WELMEC Guide 8.8:2011 (M.I.D.)
Optional fieldbuses: Profibus DP, DeviceNet, CANopen, Profinet IO, Modbus/TCP, Ethernet/IP. Ethernet TCP/IP port for remote management via internet from PC, smartphone or tablet, etc.
A/D converter 24bit (16000000 points) 4.8 kHz
Display range 999999

Some optional features:

IP69K protection rating
Data storage on USB pen drive
ATEX II 3GD version
16-bit Analog output: 0/4-20 mA; 0-5/10 V; ±5/10 V

European Community registered design.

СТЕПЕНЬ ЗАЩИТЫ: IP40
IP68
IP69K
ВОЗМОЖНОСТЬ УСТАНОВКИ НА:: В шкаф
Колонну
Стену
Стол
ВИД ДИСПЛЕЯ: ЖК
АНАЛОГОВЫЙ ВЫХОД: 0-20mA; 4-20mA; 0-10V
ИНТЕРФЕЙСЫ: RS232
RS485
ИСТОЧНИК ПИТАНИЯ: 12 VDC
24 VDC
115 VAC
230 VAC
ИНТЕРФЕЙСЫ СВЯЗИ: CANopen
DeviceNet
Ethernet/IP
Ethernet TCP/IP
Modbus/TCP
Profibus DP
Profinet IO
РЕЛЕЙНЫЕ ВЫХОДЫ: 5
ВХОДЫ: 3
